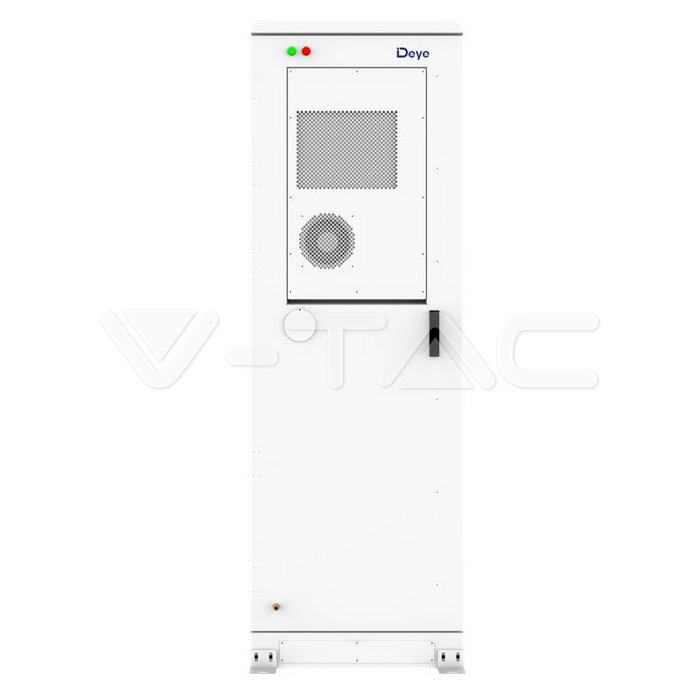

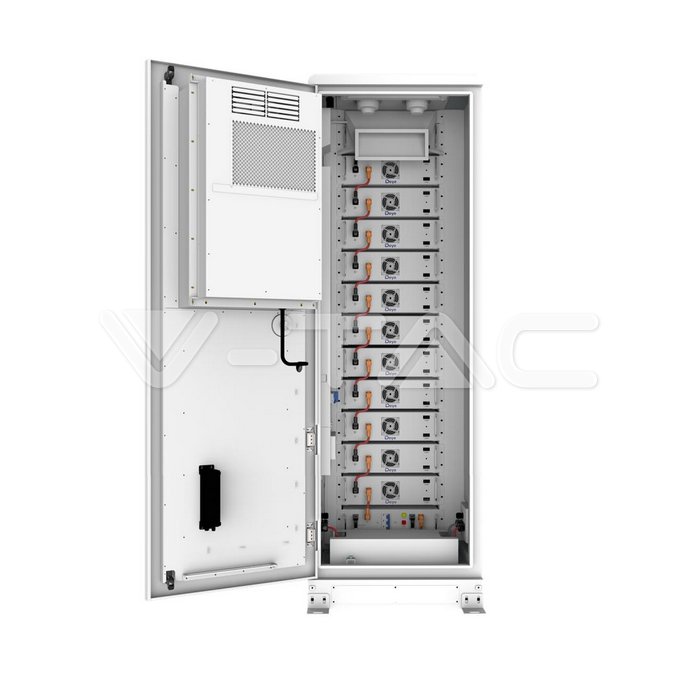

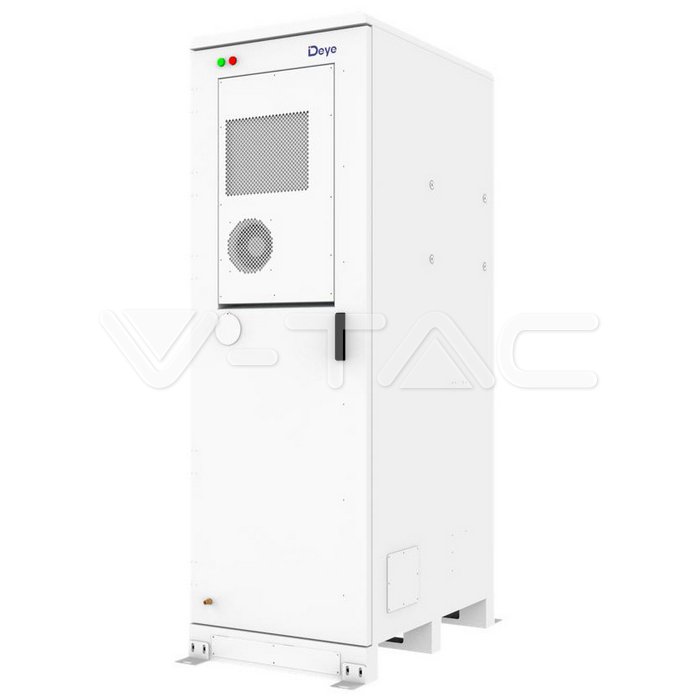

V-Tac Deye 50kW All In One High Voltage System IP55 | SKU 22023

• Potenza:
  • System: Nominal Output Power/UPS Power 50000W;
  • System: Energy Configuration 61.4kWh;
  • Inverter: Max. PV Input Power 65000W;
  • Battery: 5.12kWh
• Tensione di Alimentazione:
  • System AC Output Voltage: 3L/N/PE 220/380, 230/400Vac;
  • Battery Operating Voltage 500 ~ 700V;
  • Inverter Rated PV Input Voltage (Vdc) 600;
  • Inverter Start Up DC Voltage (Vdc) 180;
  • Inverter MPPT Voltage Range (Vdc) 150-850
• Corrente:
  • System AC Output Rated Current 75.8A;
  • Inverter Max. PV Input Current 36+36+36+36A;
  • Max. PV Short-circuit Current 55+55+55+55A;
• Frequenza di Input:50/60Hz
• Grado di Protezione:IP55

• Condizioni di lavoro:
  • Inverter: ~-40~60( >45℃ derating);
  • Battery: Charge 0～55℃ / Discharge -20℃～55℃;
• Dimensioni:
  • 735x1050x2250 (w/o inverter);
  • 527x294x894 Inverter;
• Garanzia:10 anni
• Stato:18.12.2023
