V-Tac AFORE 5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter And Accessories Included Warranty 5+5YRS Optional | SKU 11819 - VT-6607105

  1. Home
  2. Prodotti Fotovoltaico
  3. Inverter Ibridi
  4. AFORE 5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter And Accessories Included Warranty 5+5YRS Optional | V-Tac - SKU 11819 - VT-6607105
AFORE 5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter And Accessories Included Warranty 5+5YRS Optional

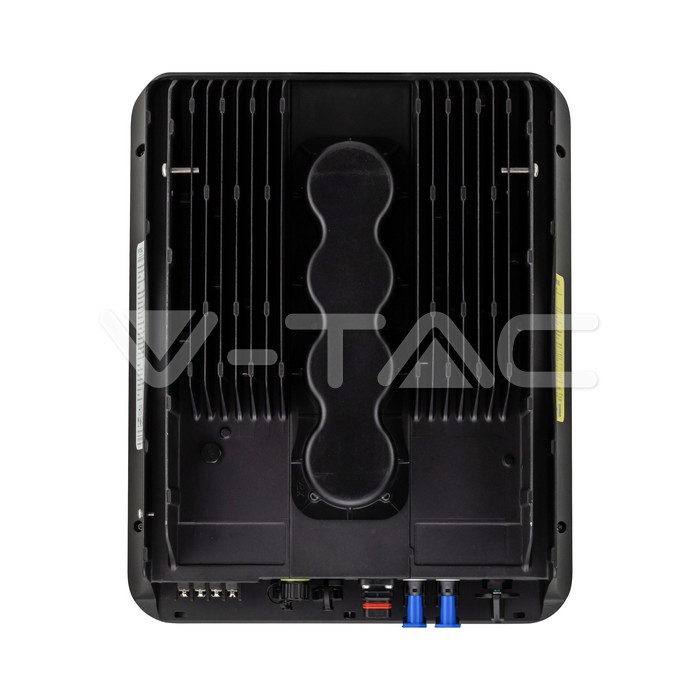

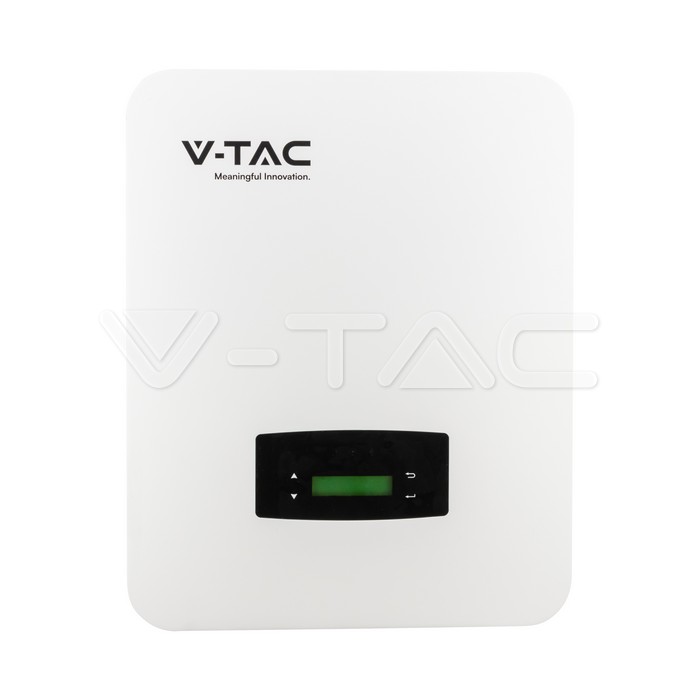

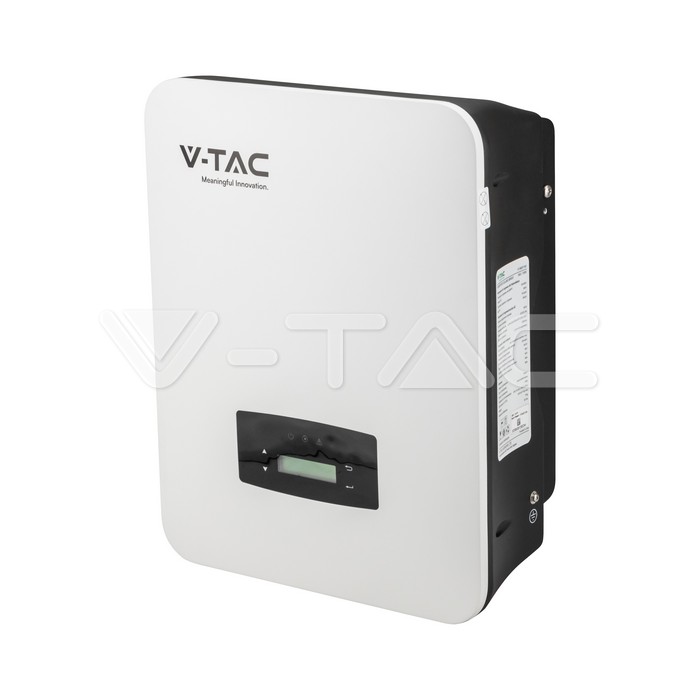

AFORE 5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter And Accessories Included Warranty 5+5YRS Optional img 1
AFORE 5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter And Accessories Included Warranty 5+5YRS Optional img 2
AFORE 5kW On/Off Grid Hybrid Solar Inverter Single Phase CT , Smart Meter And Accessories Included Warranty 5+5YRS Optional img 3

SKU 11819 | Inverter Ibridi V-tac | 5kW Dimensioni 513 x 370 x 192 mm

Caratteristiche Teniche
  • Series:Ibrido
  • Potenza:5kW
  • Tensione di Alimentazione:
    • PV Input Voltage: 550V;
    • MPPT Range: 150~500V;
    • Full Load DC Voltage Range: 360V;
    • Start-up Voltage: 100V;
  • Corrente:
    • Max. PV Input Current: 18.5 x 2A;
    • Maximum short-circuit current: 26 x 2A;
    • MPPT Tracker/Pv String Number: 2 / 2;
  • Frequenza di Input:Output Frequency 50/60Hz
  • PF:0.8 leading to 0.8 lagging
  • Grado di Protezione:IP65
  • Condizioni di lavoro:` -25 +60℃
  • Dimensioni:513 x 370 x 192 mm
  • Garanzia:5 anni | Opzione per estensione garanzia + 5 anni
  • Stato:13.07.2023
Packaging
  • Volume:0,06571 metri3
  • Peso:19,6 kg
  • Quantità nella Confezione:1 pz
  • Pezzi per Confezione:1 pz
