V-Tac PV Cable 4.0mm² Black For Solar Panel 50meters | SKU 11822

  1. Home
  2. Prodotti Fotovoltaico
  3. Accessori e Supporti
  4. PV Cable 4.0mm² Black For Solar Panel 50meters | V-Tac - SKU 11822

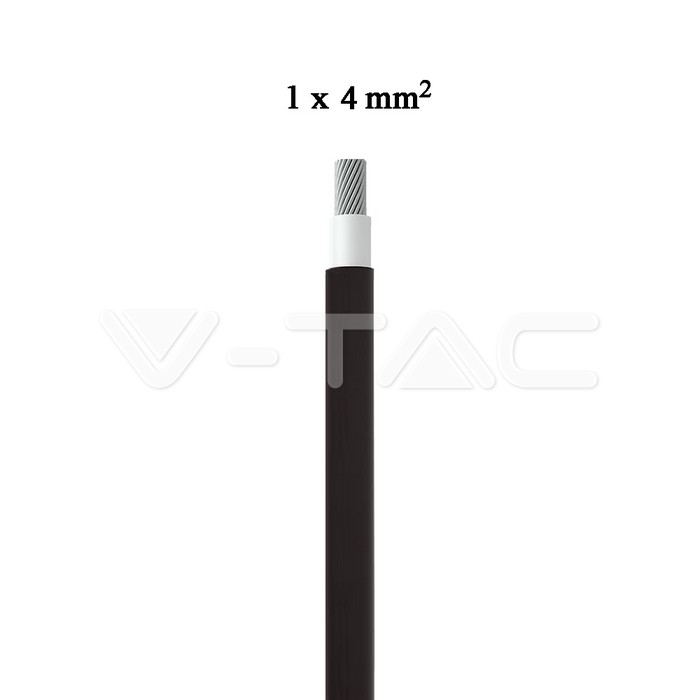

PV Cable 4.0mm² Black For Solar Panel 50meters
PV Cable 4.0mm² Black For Solar Panel 50meters img 1
Non disponibile

SKU 11822 | Accessori e Supporti V-tac

Prodotto NON Disponibile

Caratteristiche Teniche
  • Series:Cavi e connettori
  • Informazioni aggiuntive:
    • Conductor: Stranded tinned copper
    • Size: 4mm²
    • Stranding: 56/0.285±0.01mm
    • Diameter: 2.4mm
    • Primary Insulation: XLPE
    • Minimum Average Thickness: 0.7mm
    • Color: Nera
    • Secondary Insulation: XLPE
    • Outer Diameter: 5.5±0.15mm

    Electrical Characteristics

    • EN 50618/IEC 62930: AC: 1000V; DC: Max.1500V
    • Ambient Temperature: -40°C up to 90°C
    • At 20℃ Insulation Resistance: ≥ 709 MΩ.km
    • Current carrying capacity AT 30℃: 57A
    • Spark test: 10000 VAC
    • Voltage Withstand: 6500 VAC
    • Conductor Resistance AT 20℃: ≤5.09 Ω/km
  • Stato:21.06.2023
Packaging
  • Volume:0,0026 metri3
  • Peso:2,95 kg
  • Pezzi per Confezione:50m. pz
